简谈平转浸出器的作业时进程构造工艺

　浸出设备；简谈平转浸出器的工作时进程结构技术
The process structure technology of the work of the flat to the leaching machine

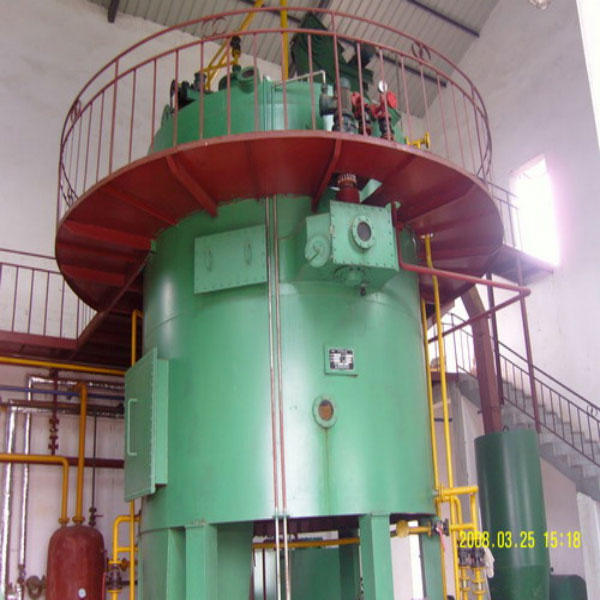

平转式浸出器工作时，料胚通过封闭绞龙送入混合绞龙在此接受混合油的预浸，以后湿料落入浸出器转格。由于料胚为湿料可防止为干料时的粉末在器内飞扬。跟着转格的逐渐工作，格内料胚转至喷淋管方位时，即遭到喷出的混合油的喷淋浸出。
In the case of a horizontal rotary extractor, the material is fed into the mixed oil by the sealing and the material is fed into the mixed oil. The blank for the wet material can prevent the powder for dry dust in the reactor. Follow the lattice gradually work, inside the blank to the spray pipe range, spray leaching mixed oil that was ejected.
由于新鲜溶剂和混合油的喷淋与料胚走向是选用的逆向路线，所以刚投入料胚的料格浸出后渗漏于混合油格里的混合油浓度高，该混合油溢流至第Ⅱ混合油格，与第II格对应料格渗漏下来的混合油经帐子过滤器。过滤后的浓混合油即从此格被抽出。
Because of the trend of fresh solvent oil and mixed spraying and blank is the selection of the reverse route, so just put into blank material price after leaching leakage in the mixed oil and gas prices in the mixed oil concentration highest the mixture oil overflow to the II oil mixed lattice, and the II lattice corresponding data grid leak down mixed oil and the mosquito net filter. After filtering the concentrated mixture is drawn from the oil.
接着，料格接受从下一个混合油格泵出的混合油的喷淋，料格继续旋转，格内的料胚再饱受一次次泵入混合油的喷淋浸出，这些混合油的浓度一次比一次淡漠。饱受新鲜溶剂喷淋浸出，对应的混合油格里收集到稀的混合油。
Then material price acceptance from under a mixed oil and gas prices pump oil mixed spraying, material price continues to rotate, squares of blank again suffered again pumped into the mixed oil spray leaching, the mixed oil concentration than a indifference. In the end, the fresh solvent is sprayed, and the mixed oil is collected in the corresponding oil price.
平转式浸出器的构成
The composition of the flat rotary extractor
平转式浸出器由进料、转格、混合油格、出粕斗、传动安排、壳体及撑脚等有些构成。
The flat rotary extractor is composed of the feed, the conversion price, the mixed oil price, the bucket, the transmission arrangement, the shell and the supporting legs.
平转浸出器转格的结构
The structure of the transfer case of the flat to the leaching device
转格又称料格。它中部通过桁架与轴套联接，转轴穿过轴套并与之紧固，转轴上端穿入上盖基地方位的轴承盒。下端则伸入位于浸出器中部托盘内的轴承座内。这么，全体转格则可绕轴翻滚。
Turn grid also known as material price. The middle part is connected with the shaft sleeve through a truss, the shaft passes through the sleeve and fastening, the upper end of the rotating shaft penetrates into the cover base range of bearing box. The lower end extends in extractor bearing tray in the middle. So, the whole rotor can be rolled around the axis.
转格由内、外两个筒体和若干块径向隔板构成。转格内、外筒体的环形空间被径向隔板切割成为若干等份，每一等份即为一个料格。
The composition of the inner and outer two cylinders and a plurality of block radial baffles. The annular space, turn inside the outer barrel body is radial plate cutting into several equal parts, each part is a lattice material.
转格的底部，大都做成活动假底 (又称活络筛扳)。假底每格一个，呈扇形，它的一边用绞链轴联接于隔板底边。扇形假底的可敞开一边的轴上，两端装有铜制滚轮，当假底闭合时，该滚轮沿焊接于壳体壁上的表里两条轨道逐渐翻滚。
Turn the bottom of lattice, mostly made of false activities (also called active sieve plate). A false bottom of each grid, a fan, the side with the hinge shaft is connected to the bottom plate. Fan pseudosubstrate open side of the shaft, two ends are provided with copper roller, when the pseudosubstrate closure, the roller along a welded to the shell wall on the inside and outside two tracks gradually tumbling.
